BLDC Motor Planetary Gearbox Type PL22.10-BL22.45

Options
Encoder
Rear Shaft
Connector
Special Shaft
Special Voltage
Product data sheet
PDF Download Icon
Request product
Planetengetriebe

Getriebemotor

Gear Ratio
No Load Speed (min-1)
Rated Speed (min-1)
Rated Torque (Ncm)
Peak Torque (Ncm)
No. of Stages
Length L (mm)
3.7188712402.730124.4
5.213518883.730124.4
145003299.1120233
1936824212120233
2725917017120233
511379030250341.5
71996541250341.5
100704658250341.5
139503380250341.5
1893724100300449.8
2642717100300449.8
3691912100300449.8
Rel. Humidity: 20 to 85 % | Ambient Temp.: - 10 to + 60 °C

Motor

No. of Poles
No. of Phases
Rated Voltage (V)
No Load Speed (min-1)
Rated Speed (min-1)
Rated Torque (Ncm)
Peak Torque (Ncm)
Peak Current (A)
Rated Power (W)
8324700046000.82.11.13.8
Radial Load (FR): 20 N (10 mm from face mounting) | Axial Load (FA): 10 N

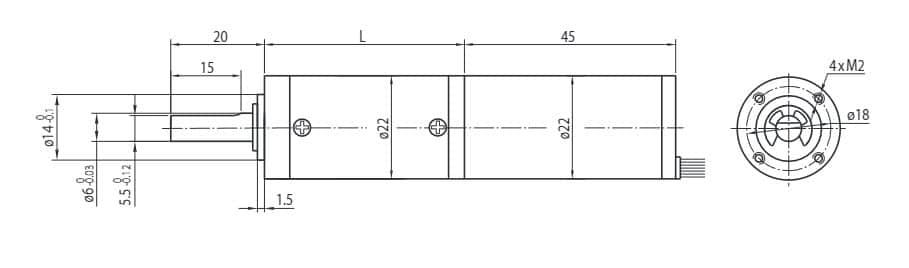

Technical drawing
