DC Motor Planetary Gearbox Type PL35-DC36.57

Options
Helical Gearing
Encoder
Rear Shaft
EMC Filter
Leads
Connector
Special Shaft
Special Voltage
Product data sheet
PDF Download Icon
Request product
DC-Planetengetriebemotoren Typ-PL35-DC36-57

Gearmotor

Gear Ratio
Rated Torque (Ncm) 12V
Rated Speed (min-1) 12V
Rated Torque (Ncm) 24V
Rated Speed (min-1) 24V
Length L (mm)
5109501099079.2
14242592337585.6
19332573226885.6
27471834519285.6
5176977310192.0
718072807592.0
100100521005492.0
139100391004092.0
189120291203098.4
264120211202298.4
516120111201298.4
7211208120898.4
Rel. Humidity: 20 to 85 % | Ambient Temp.: - 10 to + 60 °C | Net Weight max. 430 g

Motor

Rated Voltage (V)
Rated Torque (Ncm)
Rated Speed (min-1)
Rated Current (mA)
No Load Speed (min-1)
No Load Current (mA)
Rated Power (W)
122.54930≤ 16006000≤ 25012.8
242.45150≤ 7506000≤ 13012.7

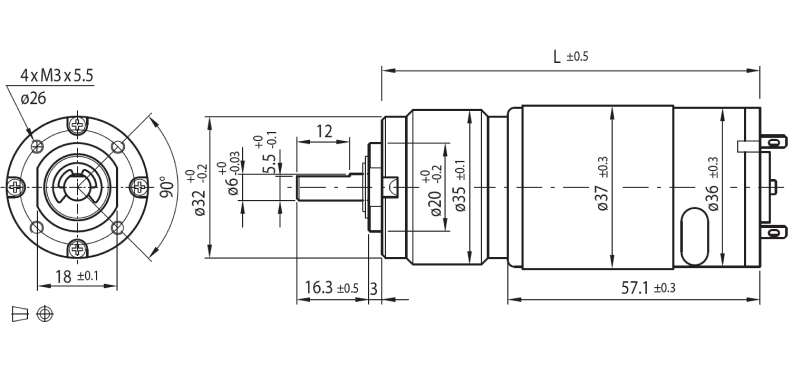

Technical drawing

Gearbox

Gear Ratio
Max. Rated Torque (Ncm)
Max. Peak Torque (Ncm)
52060
1440120
1940120
2760180
5180240
7180240
100100300
139100300
189120360
264120360
516120360
721120360
Radial Load (FR): 35 N (10 mm from face mounting) | Axial Load (FA): 25 N
